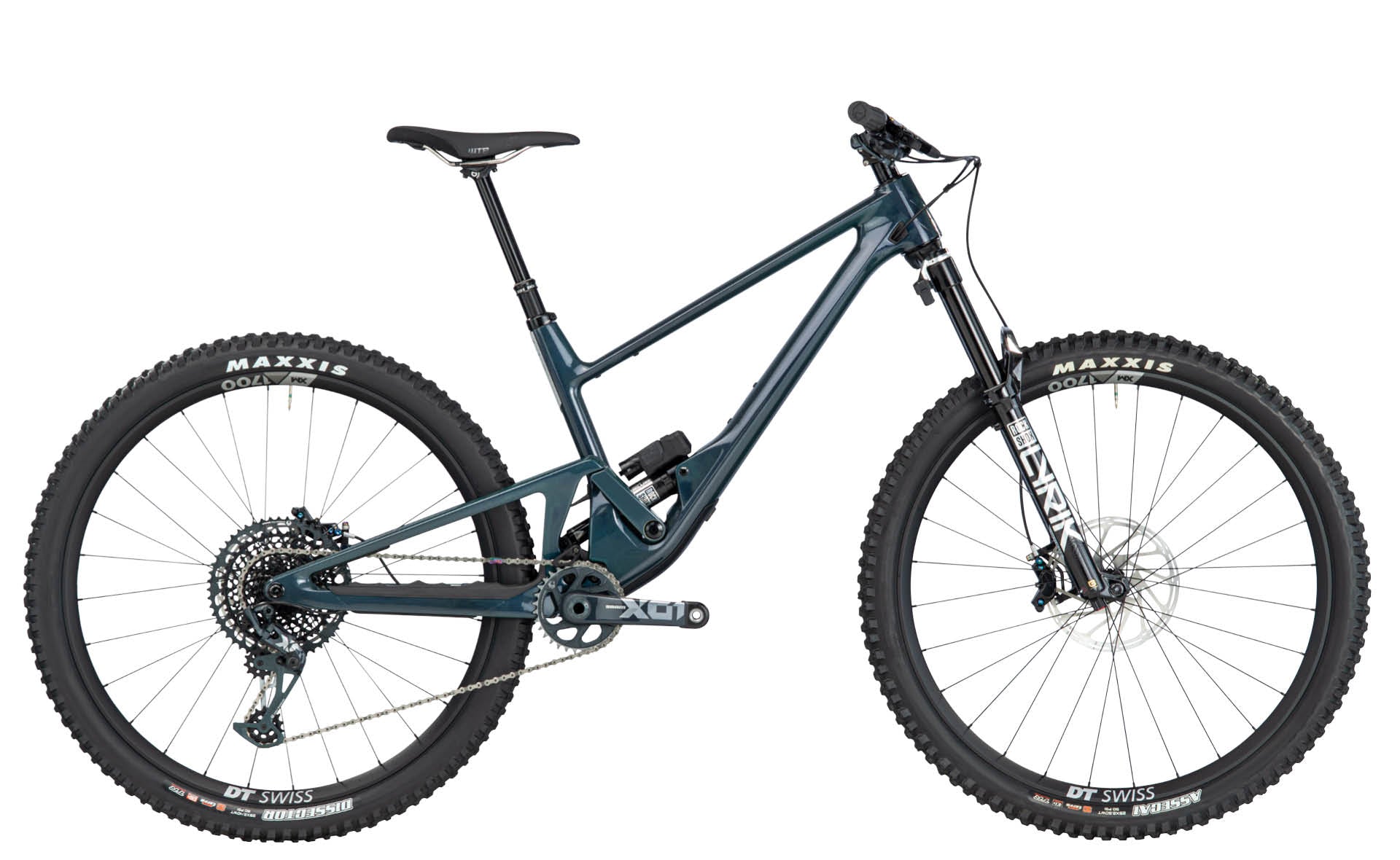

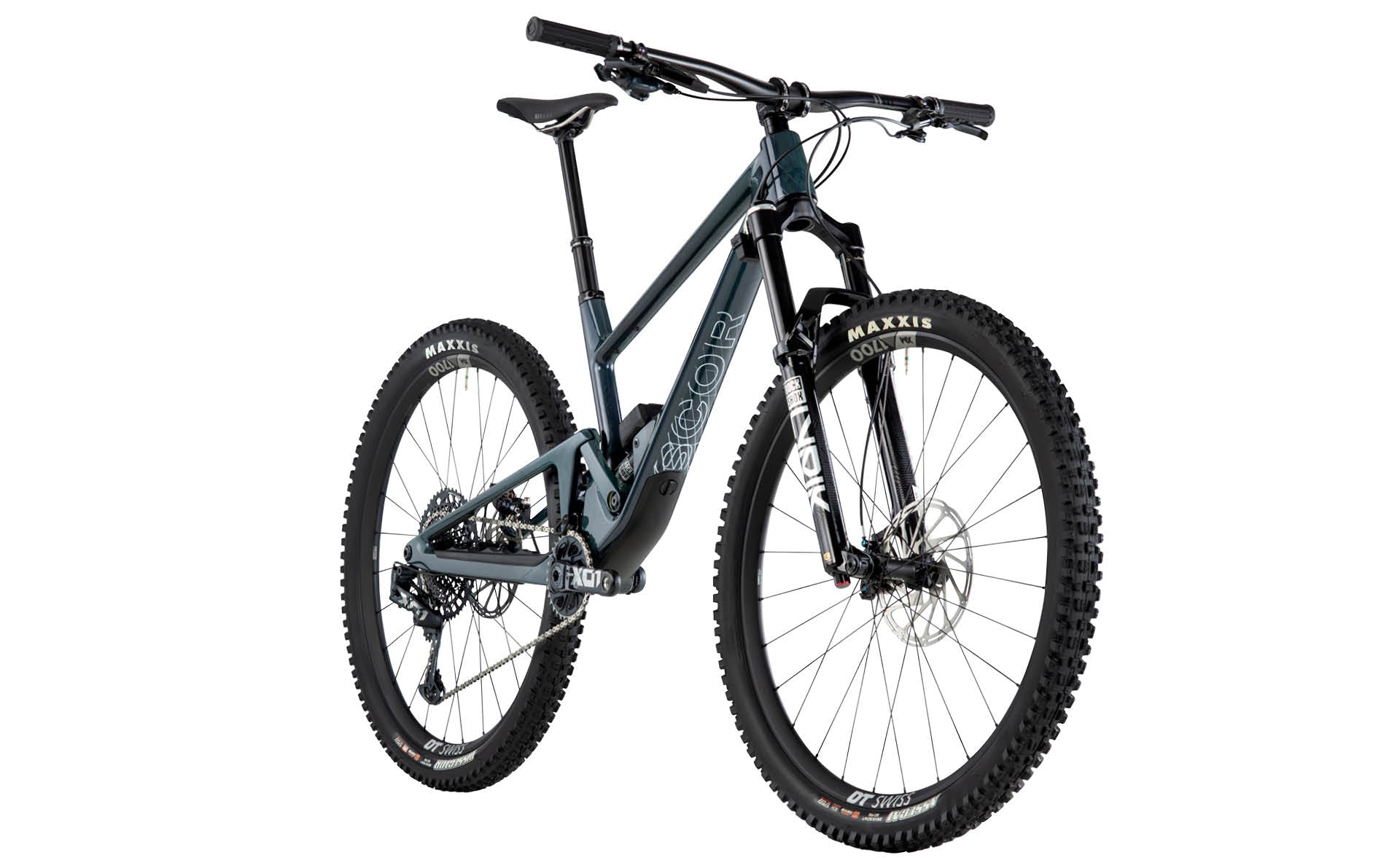

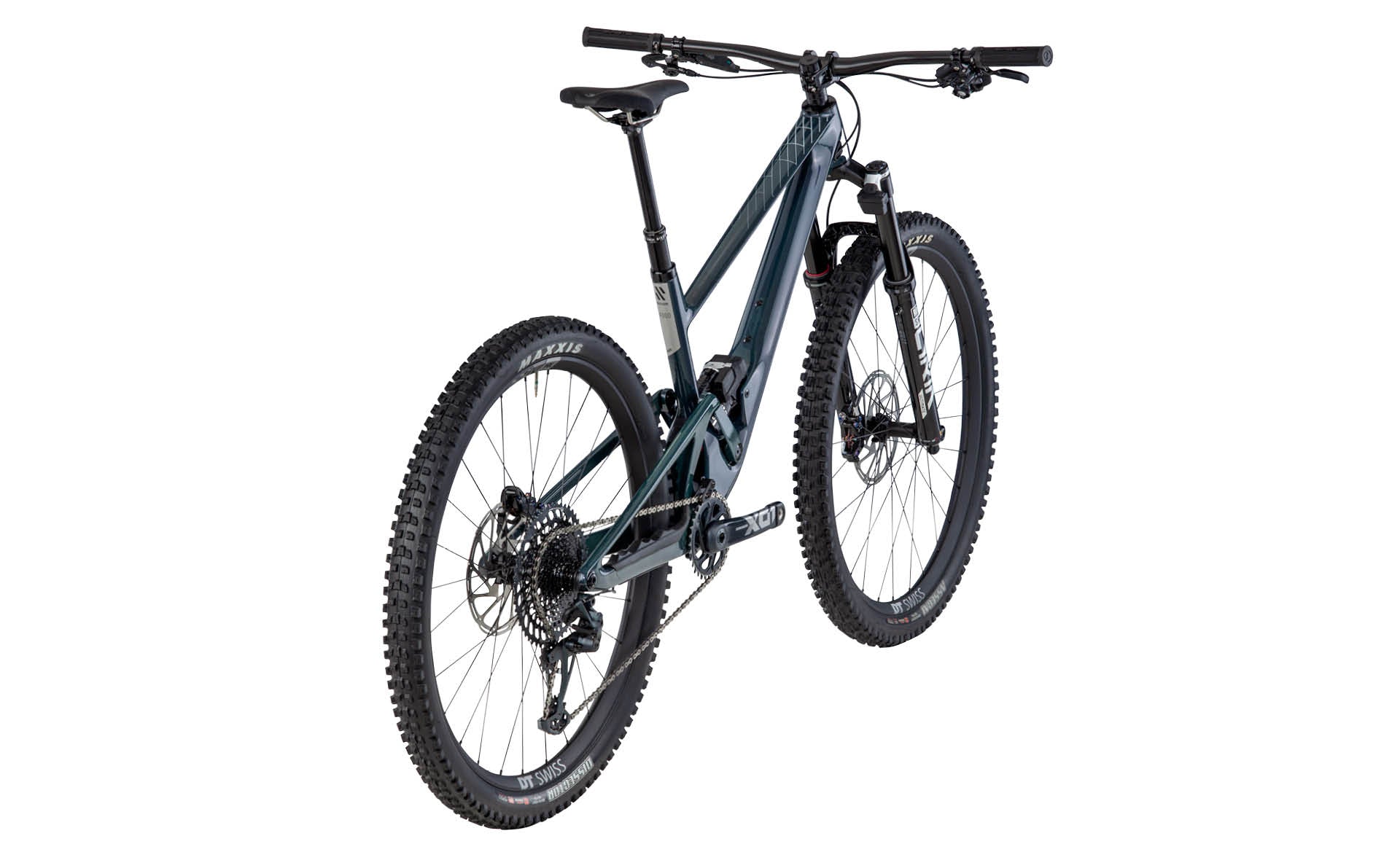

4060 ST LTD | SCOR | bikes | Mountain, Mountain | Trail

HAZE

140mm Rear / 150mm Front Travel, 29” Wheels
RockShox Lyrik Flight Attendant / RockShox Super Deluxe Flight Attendant Suspension
SRAM X01 Eagle Drivetrain, SRAM Code RSC Brakes

$12,599.00

SKU: 30005168

Size

Compatible Parts & Accessories

Add a Shock

Shipped to your local bike shop

Check availability within our Retailer Network

[{"id":41575239385148,"title":"S","option1":"S","option2":null,"option3":null,"sku":"30005168","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"4060 ST LTD - S","public_title":"S","options":["S"],"price":1259900,"weight":18000,"compare_at_price":0,"inventory_management":"shopify","barcode":"7630906510100","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41575239483452,"title":"M","option1":"M","option2":null,"option3":null,"sku":"30005169","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"4060 ST LTD - M","public_title":"M","options":["M"],"price":1259900,"weight":18000,"compare_at_price":0,"inventory_management":"shopify","barcode":"7630906510094","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41575239614524,"title":"L","option1":"L","option2":null,"option3":null,"sku":"30005170","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"4060 ST LTD - L","public_title":"L","options":["L"],"price":1259900,"weight":18000,"compare_at_price":0,"inventory_management":"shopify","barcode":"7630906510087","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41575240073276,"title":"XL","option1":"XL","option2":null,"option3":null,"sku":"30005171","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"4060 ST LTD - XL","public_title":"XL","options":["XL"],"price":1259900,"weight":18000,"compare_at_price":0,"inventory_management":"shopify","barcode":"7630906510179","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Equipped with RockShox' revolutionary Flight Attendant suspension system, the 4060 ST LTD is ready to elevate trail riding to the next level. Advanced electronics analyze rider and terrain input, dynamically anticipating the optimal suspension setup to provide the right level of support and comfort at the same time. The 4060 ST LTD gives you more time to concentrate on what truly matters: the unbridled joy of riding and playing the mountains.

Technology

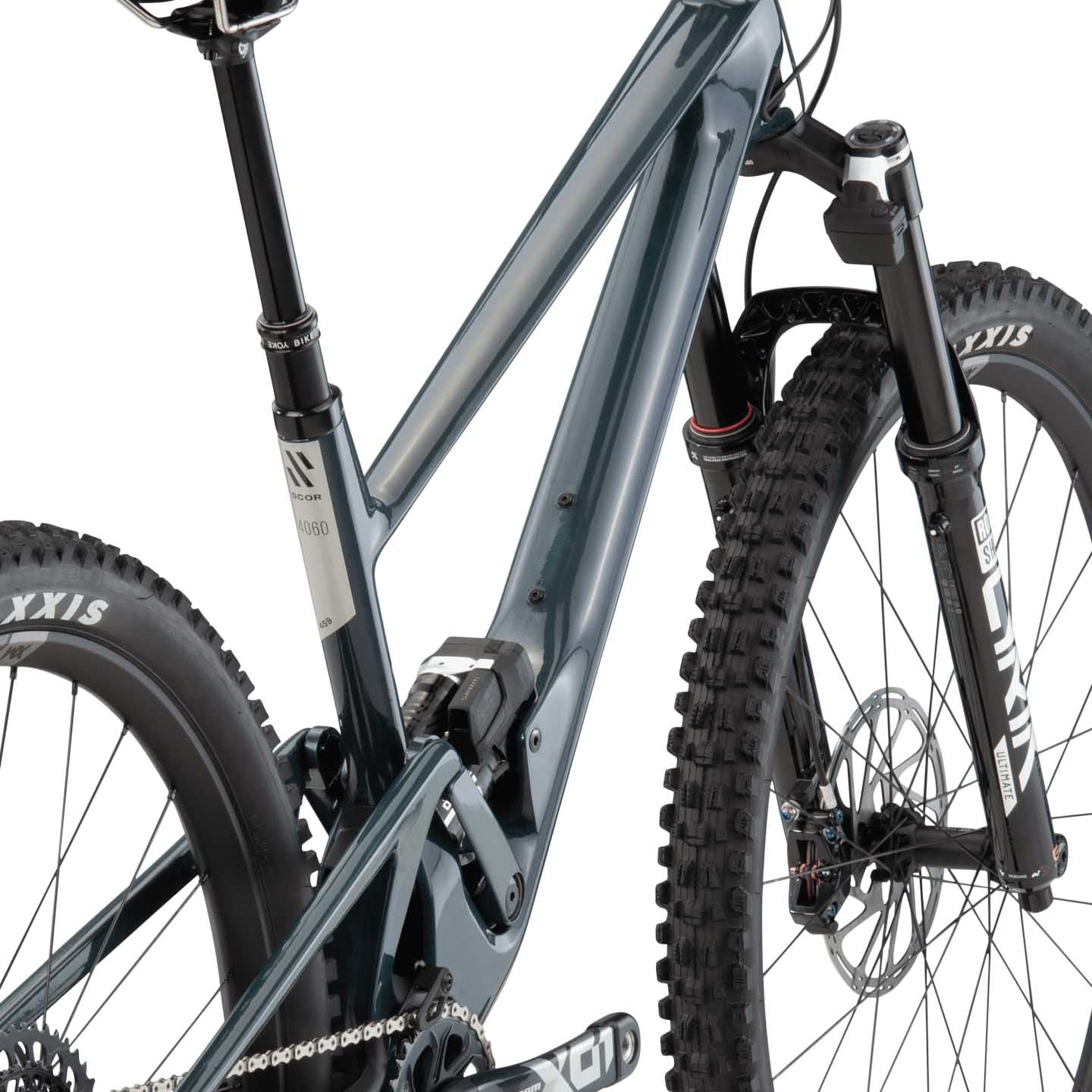

Full Carbon Frame

Designed for feel, engineered with precision. Expertly laid up high-quality composites make for a frame that is light, stiff and strong enough to shrug off drops, bails and fails. Guided internal cable routing means its beauty is more than skin deep.

Options

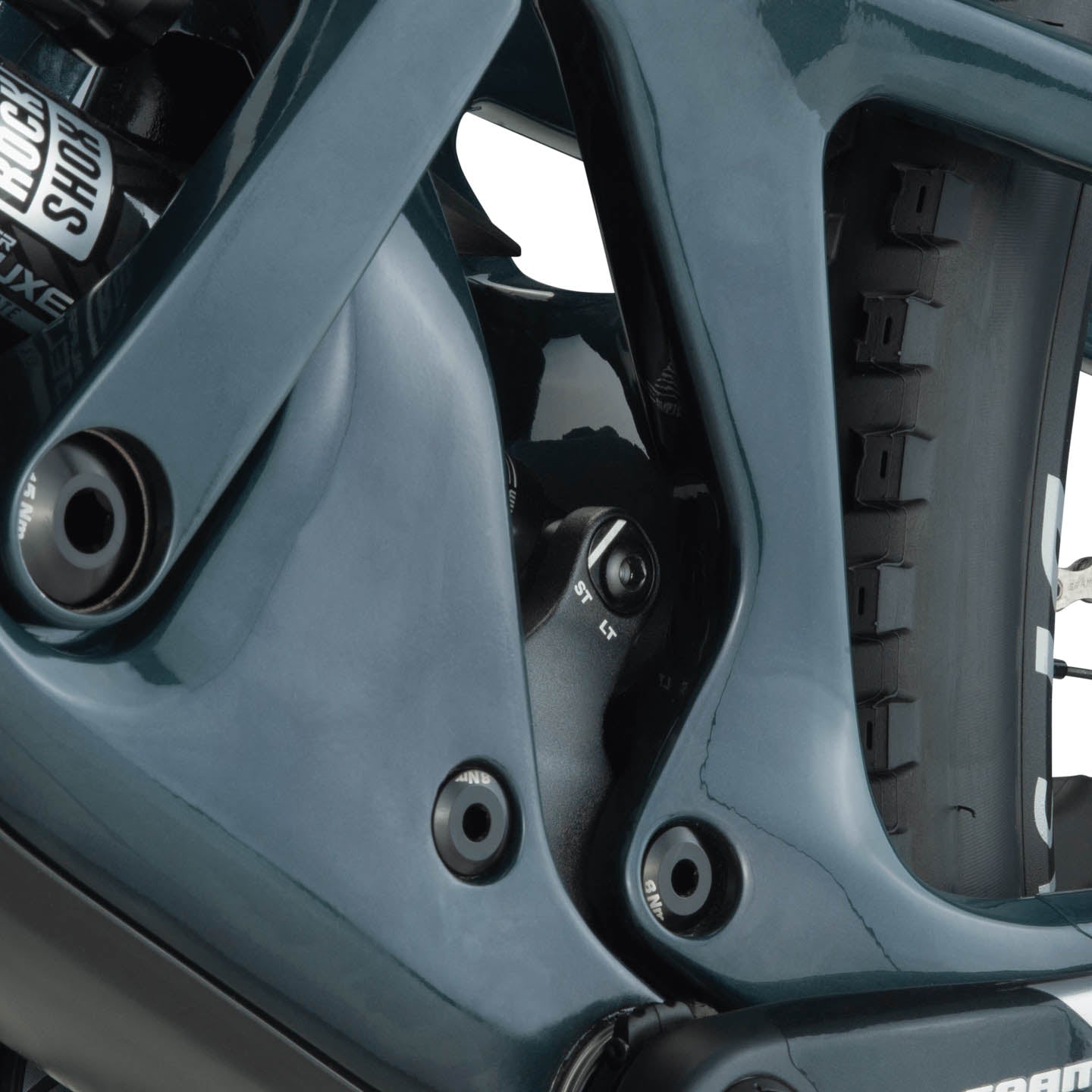

One frame, two travel options. Choose from 160mm or 140mm of rear travel just by changing the rear shock, either way a flip-chip and stealth angle-adjust headset mean you won’t be compromising on geometry.

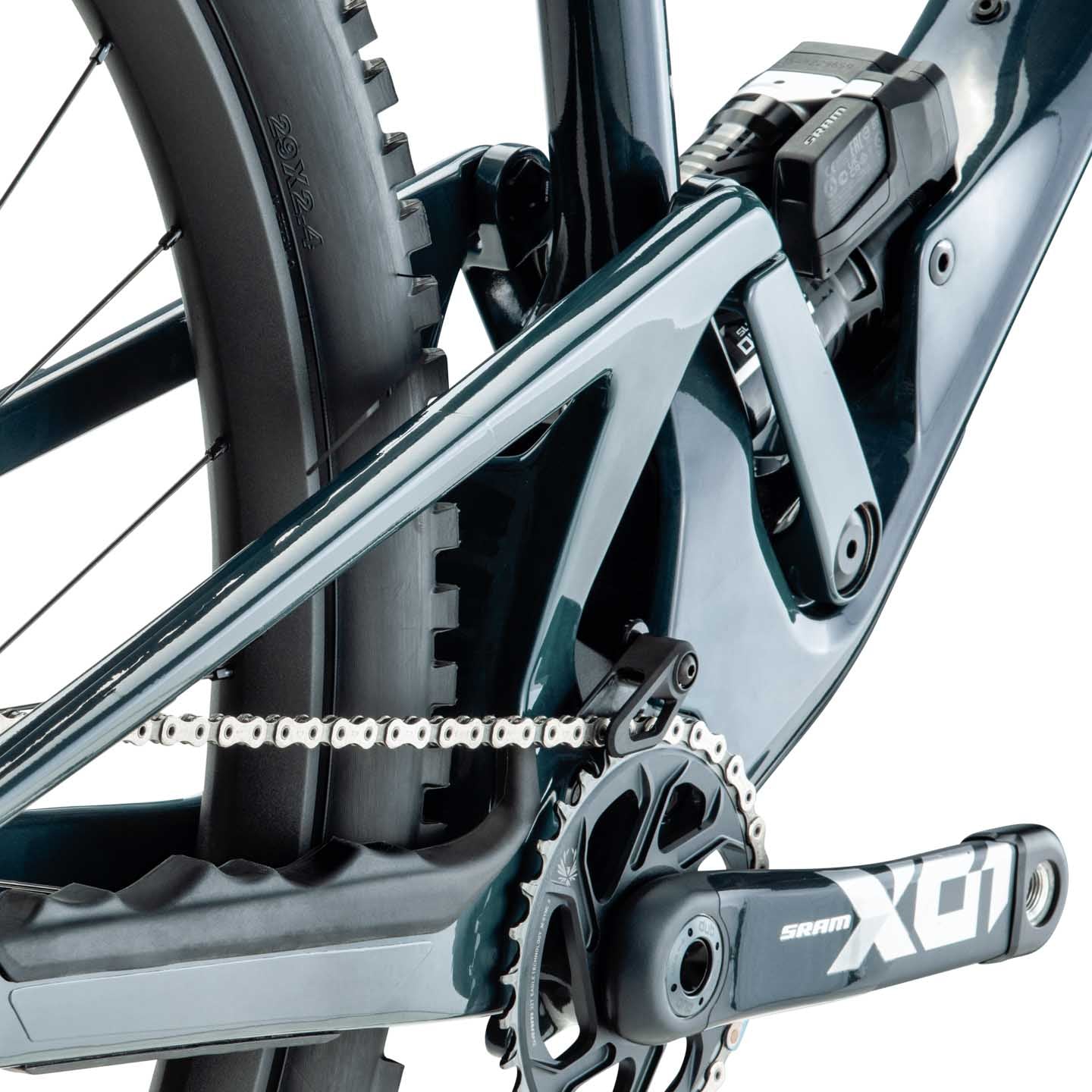

Superior Suspension

Our lower-link activated virtual pivot suspension design is supple off the top for all time grip with progressive support for when you go all too deep. Smart design keeps things stiff, low and air or coil shock compatible.

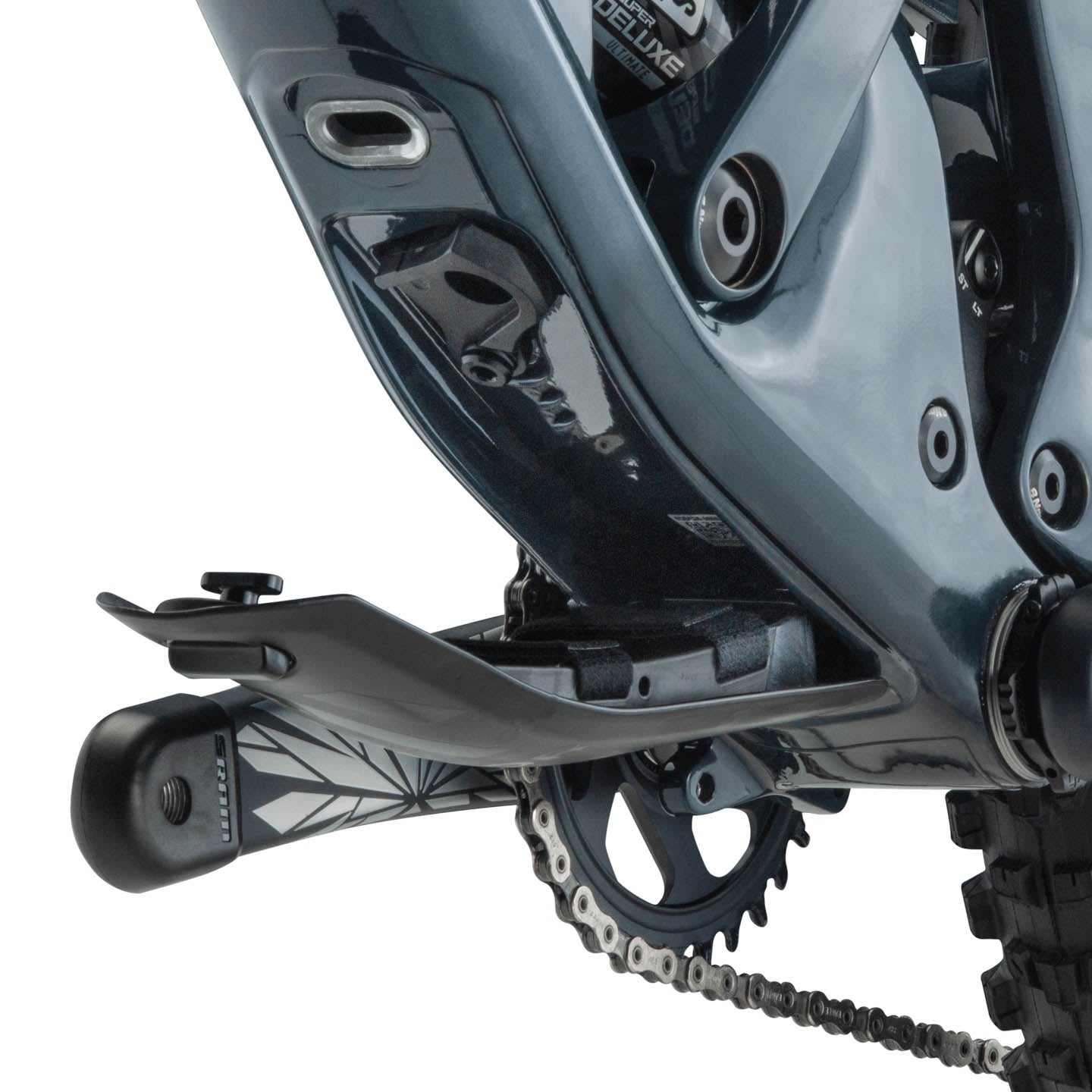

Stash Box

Mechanicals happen, but they don’t have to ruin your ride. With a spare Universal Derailleur Hanger (SRAM UDH) included and enough space for a multitool and tire plugs, the downtube stash box keeps your trailside essentials on hand. Ride on.

Technical Details

Frameset

Fork:
RockShox Lyrik Ultimate Flight Attendant | 150mm Travel | 44mm Rake

Suspension

Front Suspension:
RockShox Lyrik Ultimate Flight Attendant | 150mm Travel | 44mm Rake

Rear Suspension:
RockShox Super Deluxe Flight Attendant RC3 Hydraulic Bottom Out | 205 x 57.5mm Trunnion

Cockpit

Stem:
Burgtec Enduro MK3 | 31.8mm Bar Bore | 35mm Length | 0° Angle

Grips:
Burgtec Bartender Pro

Seat

Seatpost:
Bikeyoke Divine | S 125mm | M 160mm | L / XL 185mm Travel | Triggy Alpha lever

Saddle:
WTB Silverado Medium Titanium

Drivetrain

Crankset:
SRAM X01 Flight Attendant Carbon | 170mm Length

Chainrings:
32T

Cassette:
SRAM X01 XG-1295 Eagle

Cassette Size:
10-52T

Chain:
SRAM X01 Eagle

Rear Derailleur:
SRAM X01 Eagle

Shifters:
SRAM X01 Eagle Trigger

Gears:
1 x 12

Bottom Bracket:
DUB Interface

Brakes

Brake Levers / Calipers:
SRAM Code RSC

Rotors:
SRAM Centerline | 6-Bolt

Rotor Size (F/R):
200mm

Wheels

Rims:
DT Swiss XM 1700 SPLINE | 30mm Internal Width | Tubeless ready

Hubs (F/R):
DT Swiss 350 | Ratchet SL Freehub | Straightpull Spoke Interface | Boost spacing

Tires:
Maxxis Assegai 29 x 2.5" 3C MaxxTerra Exo TR (F) | Maxxis Dissector 29 x 2.4" 3C MaxxTerra Exo+ TR (R)

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Additional Information

Tire Clearance:
Width: 64mm | Diameter: 750mm

ASTM Classification:
Level 4

System Weight Limit:
120kg

Size	S	M	L	XL
Rider Height	155 - 170	165 - 180	175 - 190	185 - 200
BB Drop (SLACK)	31	31	31	31
BB Drop (STEEP)	29	29	29	29
BB Height (SLACK)	338	338	338	338
BB Height (STEEP)	340	340	340	340
Chainstay	433	433	433	433
Fork Length	560	560	560	560
Fork Rake	44	44	44	44
Front Center (SLACK)	765	790	815	845
Front Center (STEEP)	752	777	802	832
Head Tube	87	99	115	127
HT Angle (SLACK)	64.5	64.5	64.5	64.5
HT Angle (STEEP)	65.5	65.5	65.5	65.5
Reach (SLACK)	440	465	490	520
Reach (STEEP)	436	461	485	516
Seat Tube	400	425	440	470
ST Angle @750mm Saddle Height (SLACK)	77	77	77	77
ST Angle @750mm Saddle Height (STEEP)	76.5	76.5	76.5	76.5
ST Angle Actual (SLACK)	69.4	69.4	69.4	69.4
ST Angle Actual (STEEP)	69	69	69	69
ST Angle Effective (SLACK)	78.5	78.5	78.5	78.5
ST Angle Effective (STEEP)	78	78	78	78
Stack (SLACK)	597	608	622	633
Stack (STEEP)	599	611	625	636
Stand Over Height (80 in Front of BB)	752	764	768	784
Stand Over Height (Lowest Point)	714	723	731	741
Top Tube (SLACK)	560	589	620	654
Top Tube (STEEP)	561	590	621	655
Wheelbase (SLACK)	1198	1223	1248	1278
Wheelbase (STEEP)	1185	1210	1235	1265
