Name: 2030 NX
Brand: SCOR
SKU: 30005914
Price: 6119.0 CAD
Availability: InStock

2030 NX | SCOR | bikes | Mountain, Mountain | Trail

Not Yellow

120 mm Rear / 140 mm Front Travel, 29” Wheels
RockShox Pike Select / RockShox Deluxe Select+ Suspension
SRAM NX Eagle Drivetrain, SRAM Code R Brakes

CAD 7,199.00 CAD 6,119.00

Compatible Parts & Accessories

Add a Shock

Shipped to your local bike shop

Check availability within our Retailer Network

[{"id":41575390216252,"title":"S","option1":"S","option2":null,"option3":null,"sku":"30005914","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2030 NX - S","public_title":"S","options":["S"],"price":611900,"weight":20000,"compare_at_price":719900,"inventory_management":"shopify","barcode":"7630906513330","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41575390314556,"title":"M","option1":"M","option2":null,"option3":null,"sku":"30005915","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2030 NX - M","public_title":"M","options":["M"],"price":611900,"weight":20000,"compare_at_price":719900,"inventory_management":"shopify","barcode":"7630906513323","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41575390412860,"title":"M-L","option1":"M-L","option2":null,"option3":null,"sku":"30005916","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2030 NX - M-L","public_title":"M-L","options":["M-L"],"price":611900,"weight":20000,"compare_at_price":719900,"inventory_management":"shopify","barcode":"7630906513316","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41575390543932,"title":"L","option1":"L","option2":null,"option3":null,"sku":"30005917","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2030 NX - L","public_title":"L","options":["L"],"price":611900,"weight":20000,"compare_at_price":719900,"inventory_management":"shopify","barcode":"7630906513309","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":41575390642236,"title":"XL","option1":"XL","option2":null,"option3":null,"sku":"30005918","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"2030 NX - XL","public_title":"XL","options":["XL"],"price":611900,"weight":20000,"compare_at_price":719900,"inventory_management":"shopify","barcode":"7630906513392","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Short-travel, big fun. We’ve packed everything we know about play into a hardcore trail bike that will make you smile, whether you're living life at the ragged edge of traction or just cruising down your favorite turns. A bulletproof build kit means you’re good to go from the get-go and, with everything you need and nothing you don’t, you can focus on having fun on the trail ahead.

Technology

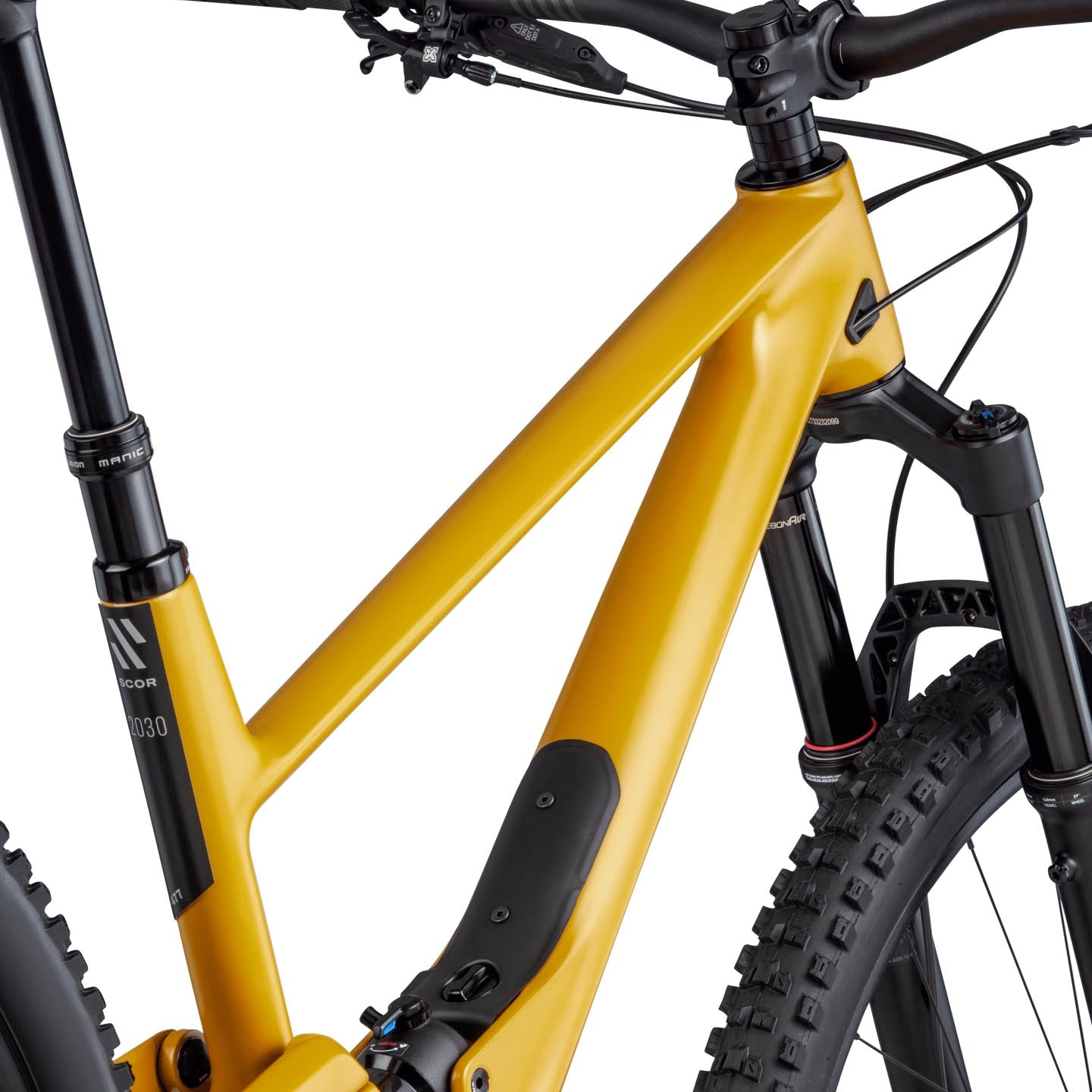

Enduro Tough. Trail Light.

The 2030’s lightweight carbon frame is built to the same enduro bike strength standards as the 4060 (that’s ASTM 4, in tech speak). Steel axles and extra sealing on all pivot points mean it’s as tough as it is fast.

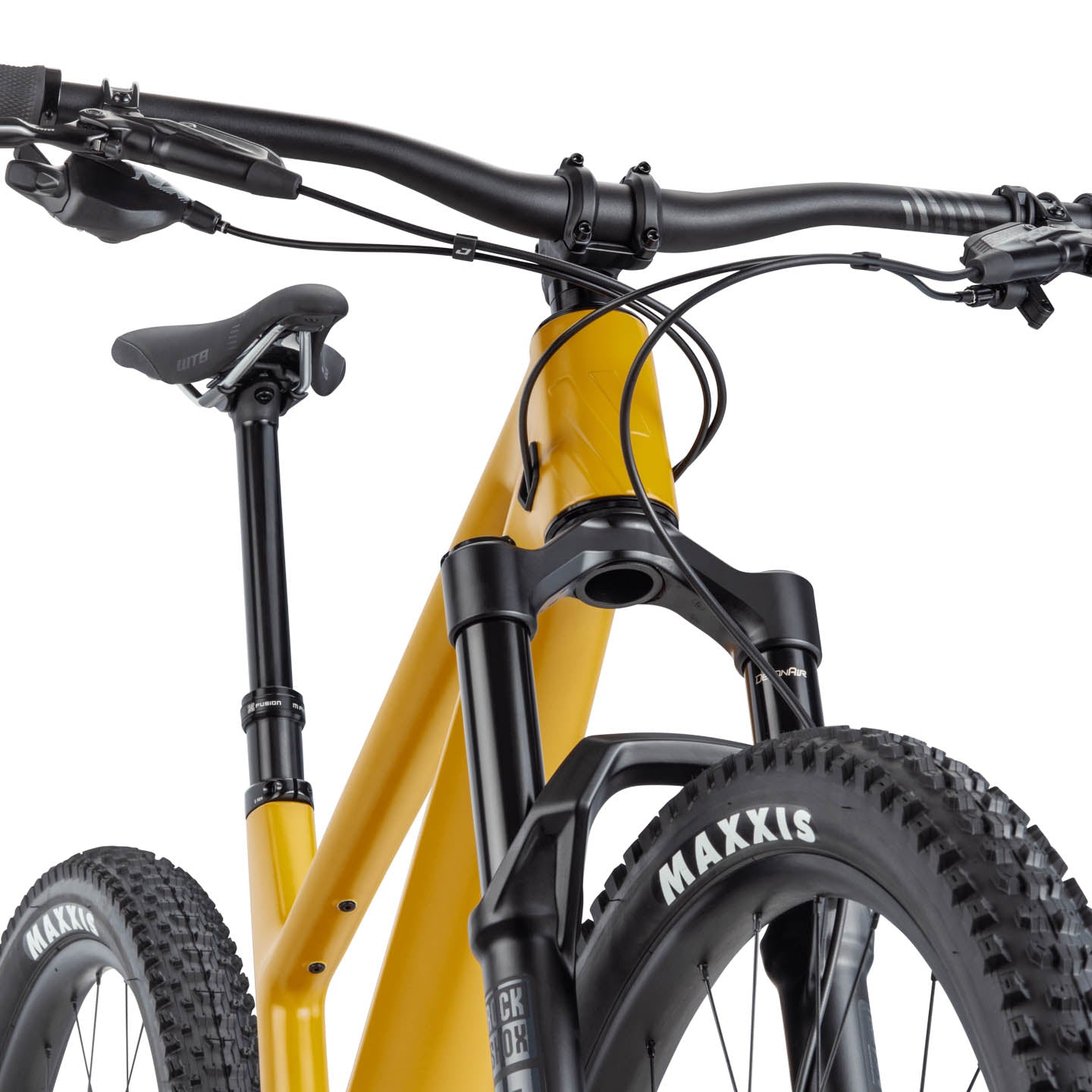

No Compromise Confidence

Slack, but no slacker. The 2030’s 64.5º head angle and long front center gives heaps of confidence in steep and technical descents, while the short rear end gives the kind of agility and playfulness a short-travel bike demands.

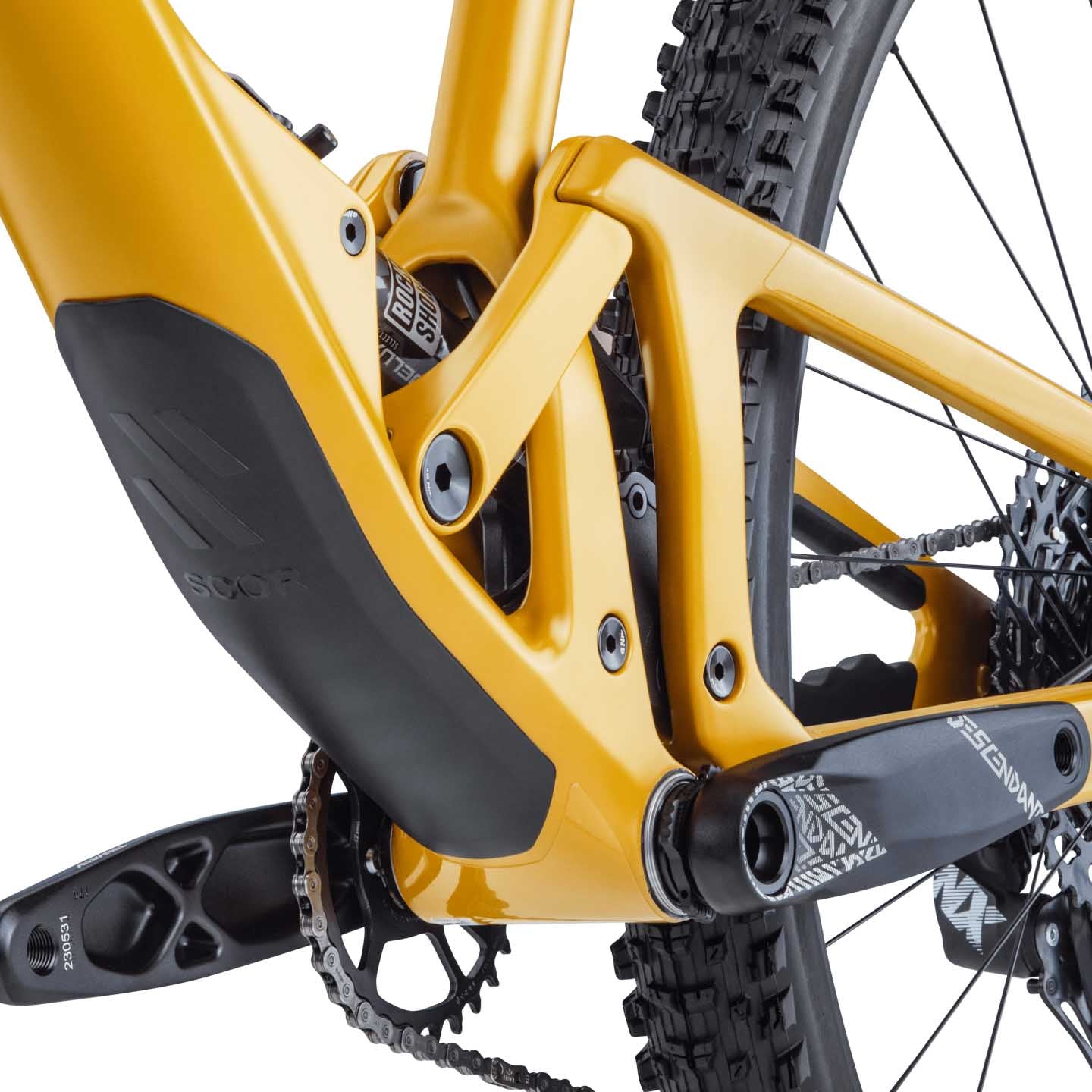

More From Less

Our lower-link driven instant center linkage design makes the most of 120mm of travel. Progressive to offer plenty of support, efficient to keep you powering up climbs while being active to keep great rear-wheel tracking, no matter how gnarly the trail.

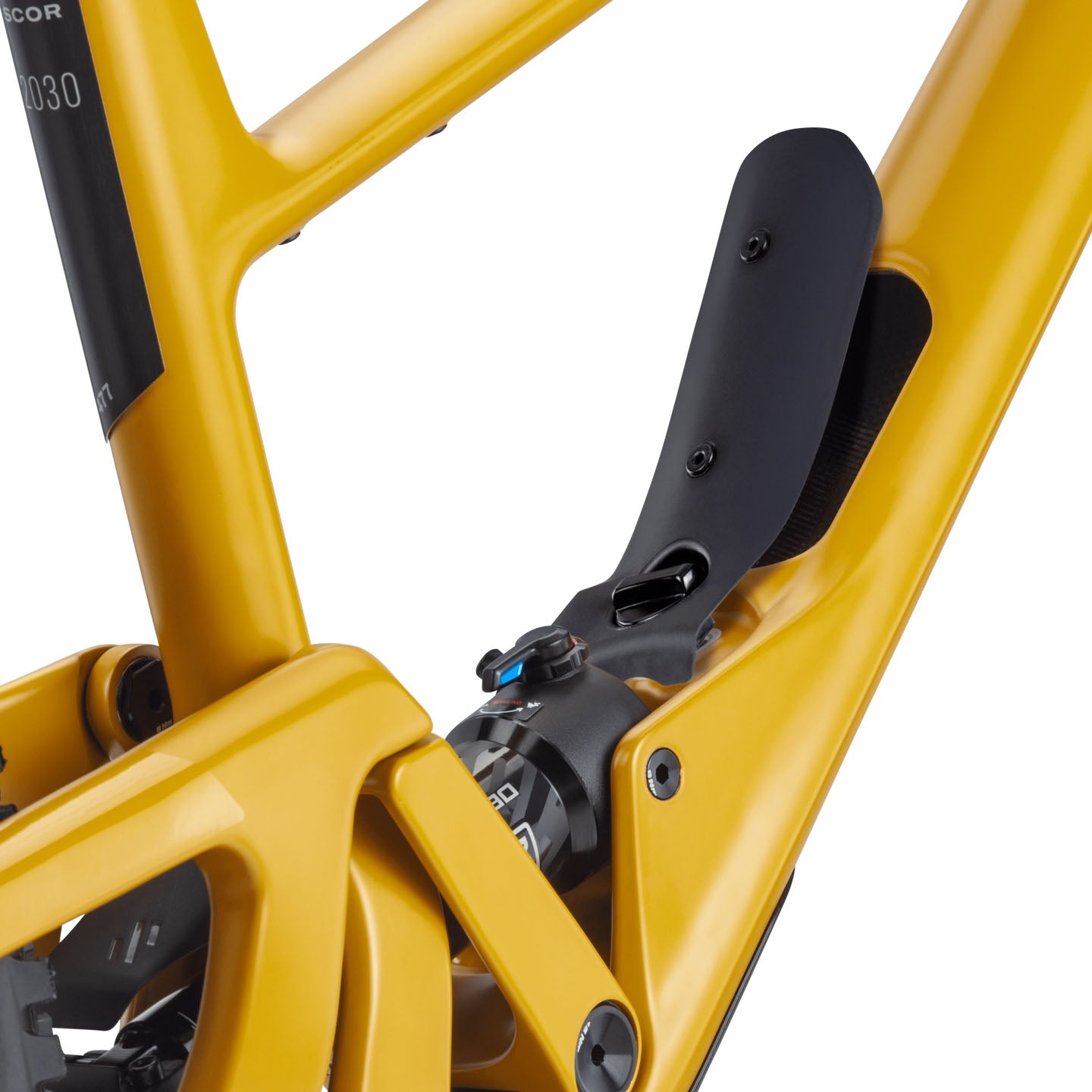

Everything Everywhere

The Stash Hatch in-frame storage, with waterproof stash pouch, holds all your ride essentials. Additional mounts on the bottom of the top tube allow you to take more on longer rides and with room for a 500ml bottle you’ll have plenty of juice in the tank.

Technical Details

Frameset

Fork:
RockShox Pike Select RC | 140mm Travel | 44mm Rake

Suspension

Front Suspension:
RockShox Pike Select RC | 140mm Travel | 44mm Rake

Rear Suspension:
RockShox Deluxe Select+ RT | 185 x 47.5mm Trunnion

Cockpit

Stem:
SCOR Alloy Stem | 31.8mm Bar Bore | 35 mm Length | 0° Angle

Grips:
VP VPG-125A

Seat

Seatpost:
X-Fusion Manic | S 125mm | M 150mm | L / XL 170mm Travel

Saddle:
WTB Silverado Medium Steel SL

Drivetrain

Crankset:
SRAM Descendant 6K Eagle | 170 mm Length

Chainrings:
30T

Cassette:
SRAM NX PG-1230 Eagle

Cassette Size:
11-50T

Chain:
SRAM NX Eagle

Rear Derailleur:
SRAM NX Eagle

Shifters:
SRAM NX Eagle Trigger

Gears:
1 x 12

Bottom Bracket:
DUB Interface

Brakes

Brake Levers / Calipers:
SRAM Code R

Rotors:
SRAM Centerline | 6-Bolt

Rotor Size (F/R):
180mm

Wheels

Hubs (F/R):
XDX-530 | 28 Spokes | Sealed Cartridge Bearings

Tires:
Maxxis Dissector 29 x 2.4" 3C MaxxTerra Exo TR (F) | Maxxis Rekon 29 x 2.4" 3C MaxxTerra Exo TR (R)

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Additional Information

Tire Clearance:
Width: 64mm | Diameter: 750mm

ASTM Classification:
Level 4

System Weight Limit:
130kg

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size	S	M	M-L	L	XL
Rider Height	155 - 170	165 - 180	175 - 185	180 - 190	185 - 200
BB Drop (SLACK)	38	38	38	38	38
BB Drop (STEEP)	36	36	36	36	36
BB Height (SLACK)	332	332	332	332	332
BB Height (STEEP)	334	334	334	334	334
Chainstay	429	429	429	432	434
Fork Length	554	554	554	554	554
Fork Rake	44	44	44	44	44
Front Center (SLACK)	750	776	800	824	849
Front Center (STEEP)	737	763	787	811	836
Head Tube	89	100	108	118	130
HT Angle (SLACK)	64.5	64.5	64.5	64.5	64.5
HT Angle (STEEP)	65.5	65.5	65.5	65.5	65.5
Reach (SLACK)	435	457	477	497	517
Reach (STEEP)	432	454	474	494	514
Seat Tube	400	420	430	440	480
ST Angle @750mm Saddle Height (SLACK)	76.5	76.3	76.3	76.3	76.3
ST Angle @750mm Saddle Height (STEEP)	76.1	75.9	76	76	76
ST Angle Actual (SLACK)	68.7	68.7	69	69.6	70.1
ST Angle Actual (STEEP)	68.3	68.3	68.6	69.2	69.7
ST Angle Effective (SLACK)	77.7	77.6	77.7	77.8	77.9
ST Angle Effective (STEEP)	77.3	77.2	77.3	77.4	77.5
Stack (SLACK)	600	610	617	626	637
Stack (STEEP)	603	613	620	629	640
Top Tube (SLACK)	578	606	627	650	672
Top Tube (STEEP)	578	606	627	650	672
Wheelbase (SLACK)	1187	1207	1227	1247	1267
Wheelbase (STEEP)	1164	1190	1214	1238	1263

SCOR 2030 User Manual
SCOR 2030 Frame Size Guide EN

2030 NX
