6080 Z LT NX USA

MAYBE BEIGE

180mm Rear / 190mm Front Travel, Mullet 29”/27.5” Wheels
RockShox ZEB Select RC / Super Deluxe Select R Suspension
SRAM NX Drivetrain, Code R Brakes

Regular priceCAD 7,699.00
CAD /

SKU: 30003508
Size

6080 Z LT NX USA

Parts & Accessories

Add a Shock

  • Shipped to your local bike shop
  • FAQ
The 6080 Z NX is all about finding the limits of what’s possible. With 180mm of suspension and DH bike geometry, it’ll happily take you right to the edge on the downhills. A stomping motor and a high-capacity battery let you push things further on the climbs. Built with ever-dependable RockShox suspension, SRAM Code R brakes with 220mm front rotors and a SRAM NX Eagle groupset, nowhere is off-limits.

Technology

Technical Details

Frameset

Frame:
SCOR 6080 Z Alloy Frame | Lower-Link Driven Instant Center Linkage | 180 mm Rear Wheel Travel | 29 / 27.5" Mullet | Boost 148 | SRAM UDH

Fork:
RockShox ZEB Select RC | 190mm Travel | 44mm Rake

Suspension

Front Suspension:
RockShox ZEB Select RC | 190mm Travel | 44mm Rake

Rear Suspension:

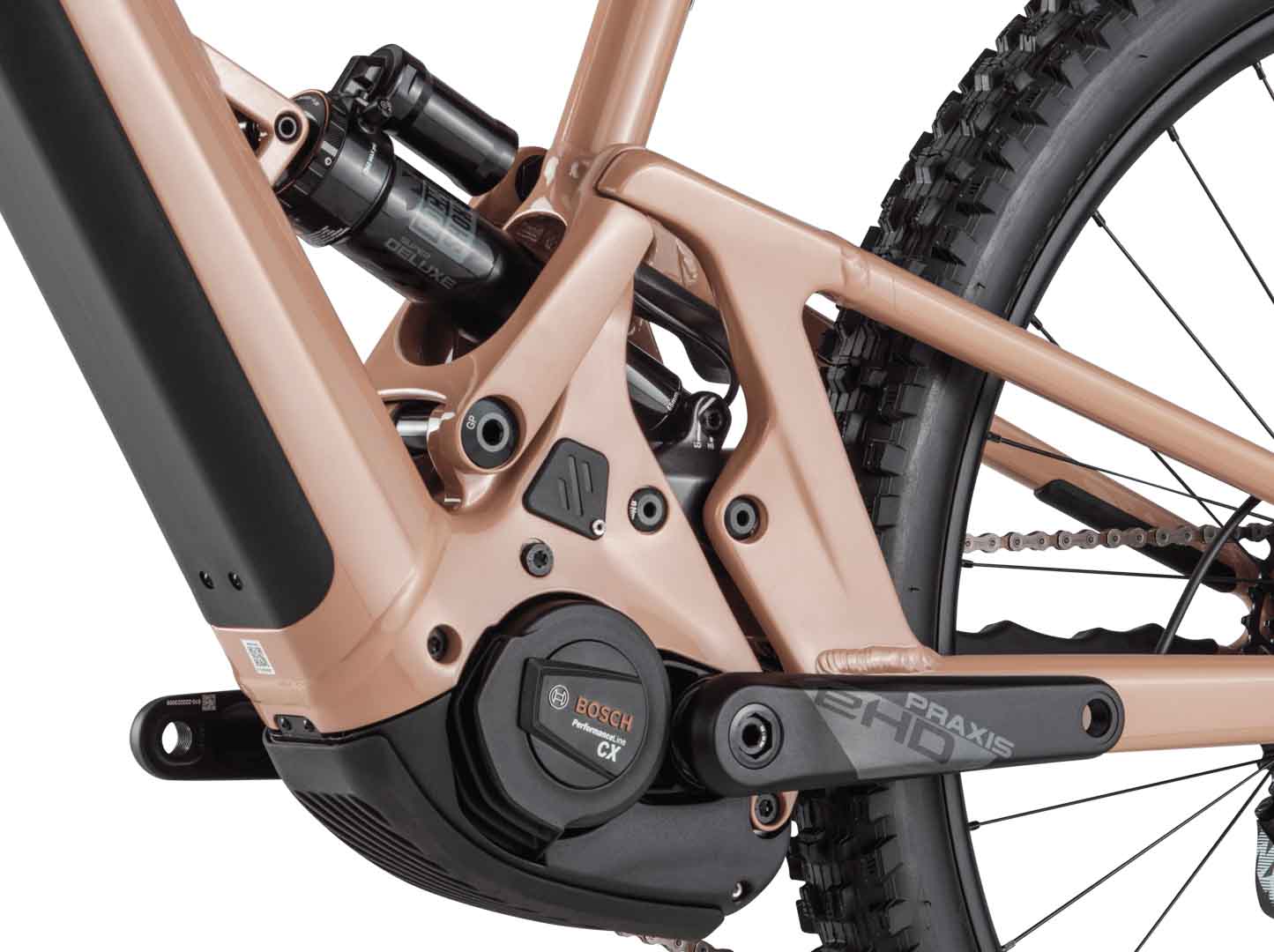

RockShox Super Deluxe Select R | 230 x 65mm

E-System

Drive Unit:

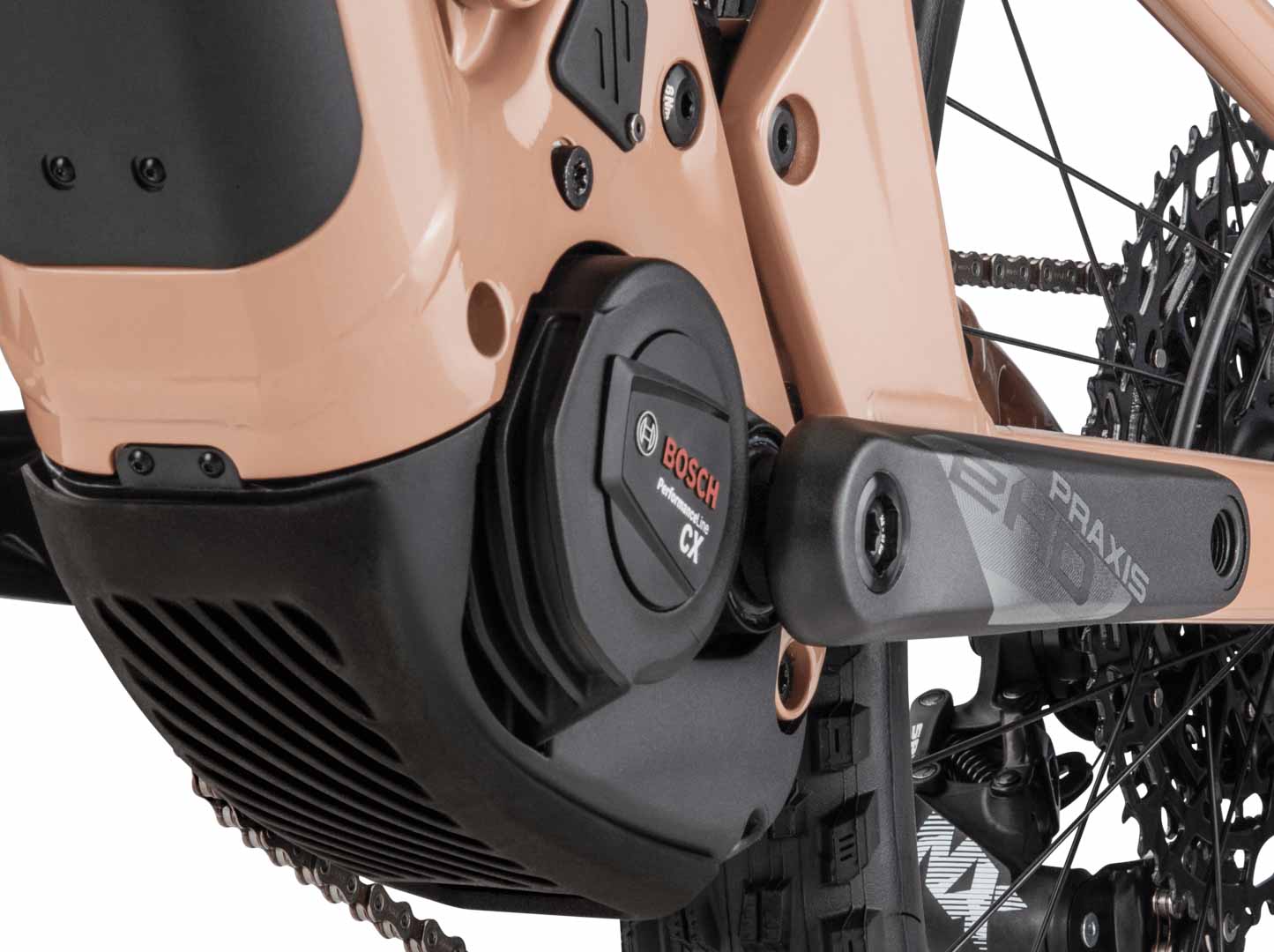

Bosch Performance CX Smart System

Battery Pack:
Bosch PowerTube | 750 Wh
NYC Lithium-Ion Battery Safety Guidelines

Display:
Bosch System Controller BRC3100

Drive Unit Control:

Charger:
Bosch 4A Charger

Cockpit

Stem:
SCOR Alloy Stem | 31.8mm Bar Bore | 35 mm Length | 0° Angle

Handlebar:
SCOR Alloy Bar | 31.8mm Clamp | 800mm Wide | 20mm Rise | 5° Upsweep | 9° Backsweep

Grips:
VP VPG-125A

Seat

Seatpost:
X-Fusion Manic | S 125mm | M 150mm | L / XL 170mm Travel

Saddle:
WTB Silverado Medium Steel SL

Brakes

Brake Levers / Calipers:
SRAM Code R

Rotors:
SRAM Centerline | 6-Bolt

Rotor Size (F/R):
220 / 200mm

Wheels

Rims:
XDH-130 | 29 / 27.5" Mullet | 32 Spokes | 6061-T6 Alloy | Welded Joint | 30mm Internal Width | Tubeless ready

Hubs (F/R):
XDH-130 | 32 Spokes | Sealed Cartridge Bearings

Tires:
Maxxis Assegai 29 x 2.5" 3C MaxxGrip Exo+ TR (F) | Maxxis Assegai 27.5 x 2.5" 3C MaxxTerra DD TR (R)

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Additional Information

Tire Clearance:
Width: 64mm | Diameter: 750mm

Weight without Pedals:

ASTM Classification:
Level 5

System Weight Limit:
130kg

Size S M L XL
SCOR Size S-435 M-459 L-485 XL-515
Rider Height 155 - 170 165 - 180 175 - 190 185 - 200
Reach 435 459 485 515
Stack 622 625 635 650
BB Drop 16 16 16 16
Chainstay 435 435 435 435
Fork Length 606 606 606 606
Fork Rake 44 44 44 44
Front Center 798 821 848 876
Head Tube 93 96 107 124
Head Tube Angle 63 63 63 63
Seat Angle 76 76 76 76
Seat Tube 400 425 440 440
Standover Height 733 733 733 733
Top Tube 563 592 623 657
Wheelbase 1224 1247 1274 1302
